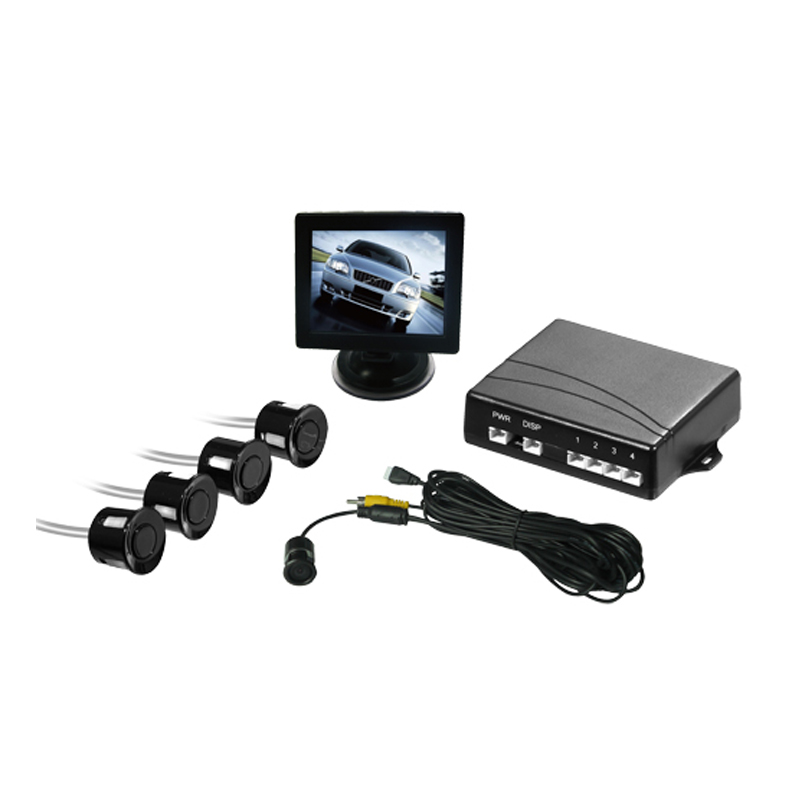

TFT LCD Pakring Sensor
3.5 inch digital TFT LCD Display.
Aspect ratio 4:3
Resolution: 640(H)×240(V)
Video input:1 way video
Can be connected with the camera and parking sensor
Detective distance: 0.3m-2m
2,3,4 sensors optional
Camera incluede
Display the distance on the screen
Specification:
1) Working voltage: DC9~15V
2) Working current: 40mA~200mA
3) Max power: 4W(Max)
4) Farthest distance: 2.0m
5) Siren sounds distance: 0.3~2.0m
6) Siren volume: 85~105dB
7) Working temperature: -40~80
Operation
Start up reversing system, reversing lights flash and buzzer sounds "Bi", then parking sensor turns on automatically.
When vehicle reverse away 2 meters from obstacle, digital LCD shows obstacle place and distance
|
