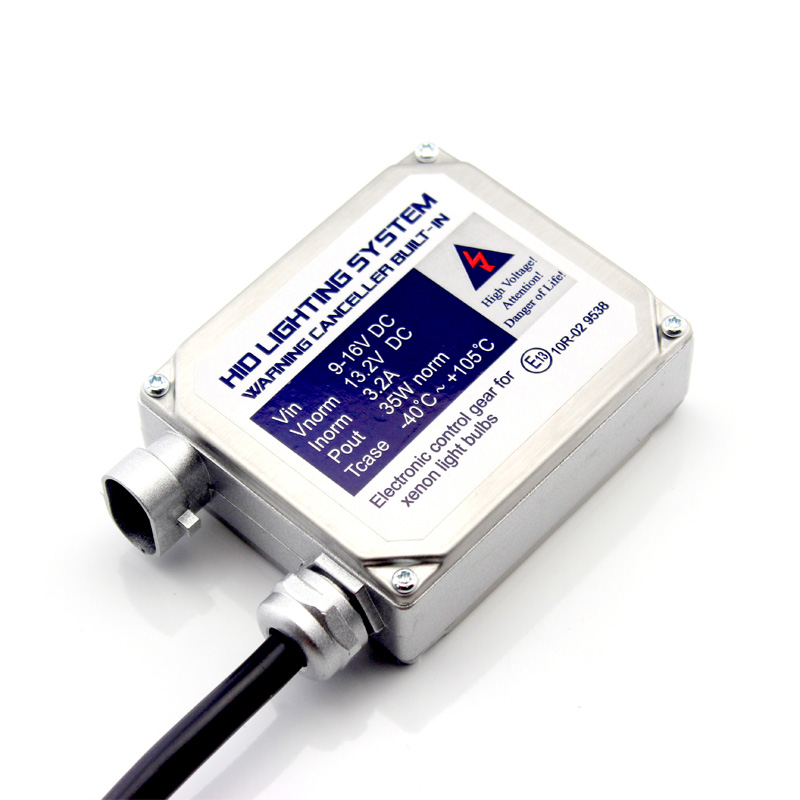

TFB03 35W High Quality CAN-BUS HID Ballast

Technical Parameter:

Rated input voltage: DC13.2V (9-16V DC)

Input start-up current: 5.5A

Stable input current: 3.2A (Input 13.2V DC)

Rated output power: 35W

Output frequency: 380Hz±20Hz

Rated output voltage: 85V AC

Instant start-up voltage: ≥23 KV AC

Protection of Short Circuit: Lock protection against continuous or long-time short circuit.

Protection of Open circuit: Lock protection in 0.7s after Open circuit.

Rated working efficiency: ≥80%

Non-stop start up: Normal working

Warning canceller built-in

Life-span: ≥ 10000hours

Standard work temperature: -40℃~+105℃

Waterproof: Accord with DIN 40050 Standard
Dustproof: Accord with SAE J575 Standard
Shockproof: Accord with DIN 40046 Standard

Size: 90 x 78 x 32mm

Weigh: 0.410KG

Unique advantage:

1 Slow start with no inrush current, extend the bulb life two times.

2 Starting current of the cold bulb is less than 6A.

3 Starting power of the warm bulb is less than 35W.

4 Starting power of the cold bulb is less than 55W.

5 In the case of vibration, the power change less than 3W (Others are 17W).

6 Rated power is very stable.

7 After the bulb aging, the bulb still lights up even if the bulb voltage drops to 150V, others won’t light up when the bulb voltage drop to 123V.

8 Output frequency is 380Hz ± 20Hz, reducing the electromagnetic radicalization.

9 E-mark Approved: E13 10R-02 9538.
