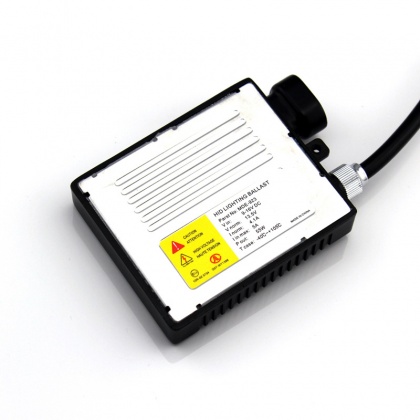

TSB04 55W Ultra Slim HID Ballast
Rated input voltage: DC13.5V (9-16V DC)
Input start-up current: 6.5A
Stable input current: 3.9A (Input 13.5V DC)
Input low voltage protection: 7.0±0.5V DC
Input high voltage protection: 16±0.5V DC
Rated output power: 55W±1W
Output frequency: 250± 10% Hz
Rated output voltage: 85V AC
Instant start-up voltage: ≥23 KV AC
Output open short protection: Automatically stop working within 2S while open circuited
Output open circuit protection: Started-up continuously, power supply works normal
Rated working efficiency: ≥80%
Non-stop start up: Normal working
EMI CANBUS: The interior has the CANBUS Function
Life-span: ≥ 10000hours
Standard work temperature: -40℃~+105℃
Water-proof, anti-vibration and salt-fog test: Normal working
Size: 83x70x14.5mm
Weigh: 0.278KG
